Showing 1–12 of 19 results
Is a slide gate opener for residential applications and gates up to 1100 LBS & 75 feet in length. Great versatility & extreme safety. Kit includes operator, control board, receiver, transmitter and one pair of photocells. ITEM #: BFT K2R
This model has great versatility thanks to the levers that permit installation on large sized pillars, opening up to 125 degrees. Maximum offset 12 inches (30 cm)

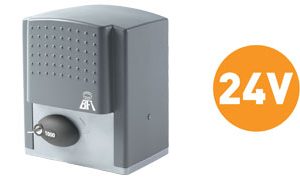

Powered at 24V, this version has been specifically designed for simpler & faster installation in compliance with the latest safety standards. Includes a universal control panel for one or two 24V motors with a one wire limit switch for each motor, quick wiring through plug-in terminal strips, LCD display, crush prevention by electronic torque self-adjustment, built-in 63 remotes rolling code receiver, optional serial control management, solenoid electric lock & battery backup. ITEM #: BFT R935
Electro-mechanical automation for rack sliding gates. Thanks to the obstruction sensing device, the operator reverses motion and prevents damage to people and vehicles in the event of contact. ITEM #: BFT P 9261
This residential operator is rated at 1500 lbs and can handle 60 cycles per hour. Opening speed is approximately 12 seconds and slows at the last 5-10 degrees of the swing. ITEM #: BYAN 500 A

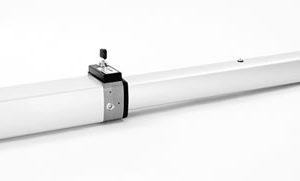

The 600 Series is a residential and medium-duty commercial operator for applicants that require 100 cycles per hour or less. It is ideal for uses that do not require continuous duty. Gate: 2000 lbs. ITEM #: BYAN 600 A

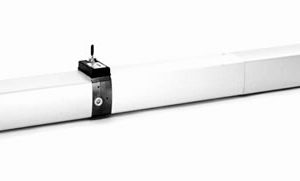

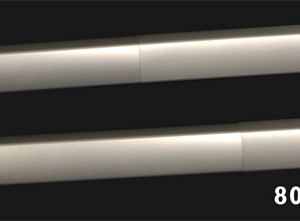

This operator can be used for most applications. The gate leaf is up to 16 feet. Opens with a 90 degree swing in 12 seconds & closes in 14 seconds. 800/900 Slow Speed Operator should be used in applications where the gate is over 16 feet & travels up or down a hill and/or if the gate frame flexes when reaching the end of travel. Can open with 90 degree swing in 17 seconds and close in 20 seconds. 800-900 Long is normally used in applications where gate is too large in diameter for normal mounting dimensions or where an insert cannot be mounted in the column. Can open a gate with a 90 degree swing in 12 seconds and close in 14 seconds. ITEM #: BYAN 900 A

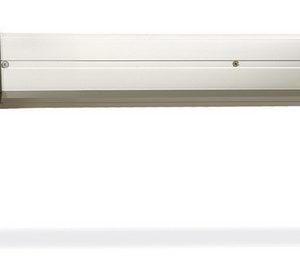

Operates on 24 Volt DC power and features built-in limit switches that precisely control the start/ stop speed and travel of your gate. ITEM #: DK 6002-080
These operators are designed to manage vehicular slide gates in residential, commercial and industrial applications. They can easily be mounted in the front, center or rear of the gate without any costly and time consuming field modifications. In addition, the operators can be pad or post mounted to meet any installation requirements. Can also be equipped with a factory installed DC Convenience open option which will automatically open the gate in the event of a power outage. ITEM #: DK 9150
DoorKing’s Maximum Security operators are designed to operate vehicular slide gates in limited Class lll& restricted Class VI applications only. These operators should not be used in serving the general public. Designed to mount in front, center or rear of the gate without any costly or time consuming field modifications. To center mount the operator, the operator requires the pedestal mounting base (optional on 9210, 9220). The speed control on the operators (except 9210) allows the user to set the speed of the gate from 1/2 to 2 feet per second & provides slow-start and slow stop functions as well. ITEM #: DK9200
The DKS 9500 series operators are designed to operate very heavy vehicular slide gates in limited Class III & restricted Class VI applications only. Not meant to serve the general public. The 9500 series uses a high tensile steel alloy roller chain as the pulling medium, which is immune to slippage and un-even terrain and simplifies installation. These operators include a speed control module which allows the user to set the speed of the gate and have a slow-start and slow stop function as well.
The original ultra-reliable and secure hydraulic slide gate operator chosen for thousands of secure sites nationwide. Fully enclosed hydraulic motors drive a rigid drive rail passing between two compressed polyurethane wheels. Few moving parts.
